SQUARE D HOMELINE Indoor Load Center 200A, 20-Space 40-Circuit
SKU 201-HOM2040M200PCVP
$243.85
In stock: 3 available

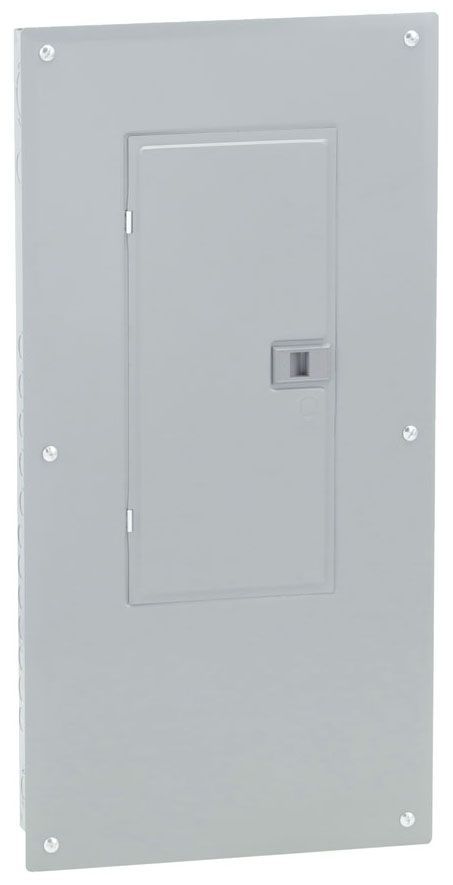

SQUARE D HOMELINE Indoor Load Center 200A, 20-Space 40-Circuit
Product Details
Brand: Square D Homeline
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
| Product Type | Load Center |
|---|---|
| Marketing Trade Name | Homeline |
| Load Center Type | PoN Convertible Mains (breaker) |
| Rated Current | 200 A |
| Number of Spaces | 20 |
| Maximum Number of Single Pole Circuits | 40 |
| Enclosure Rating | NEMA 1 indoor enclosure |
| Cover Type | Combination flush/surface cover |
| Electrical Connection | Lugs |
| Provided Equipment | Circuit-breaker 1) 2P 200 A 120/240 V AC main supply ready assembled |
| Max Short Circuit Current Rating | 22 kA |
|---|---|
| Maximum Number of Tandem Breakers | 20 |
| Number of Phases | 1 phase 3 wires |
| Voltage Rating | 120/240 V AC |
| Wire Size | AWG 4...250 kcmil aluminium/copper |
| Ground Bar | Grounding bar (ordered separately) |
| Busbar Material | Tin plated aluminium: busbar |
| Enclosure Material | Welded sheet steel |
| Surface Finish | Baked enamel Gray |
| Box Number | 9 |
| Bus Rated Current | 225.0 A |
| Height | 29.8 in (758 mm) |
| Width | 14.3 in (362 mm) |
| Depth | 3.7 in (95 mm) |
| Ambient Air Temperature for Operation | 23 °F (-5 °C)
104 °F (40 °C) |
|---|---|
| Product Certifications | UL listed file E-6294 |
| Category | US1DE3C00045 |
|---|---|
| Discount Schedule | DE3C |
| GTIN | 785901977285 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.100 in (12.954 cm) |
| Package 1 Width | 15.500 in (39.370 cm) |
| Package 1 Length | 21.200 in (53.848 cm) |
| Package weight(Lbs) | 24.180 lb(US) (10.968 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 45.000 in (114.300 cm) |
| Package 2 Weight | 508.0006 lb(US) (230.425 kg) |
| Warranty (in months) | 18 |
|---|
