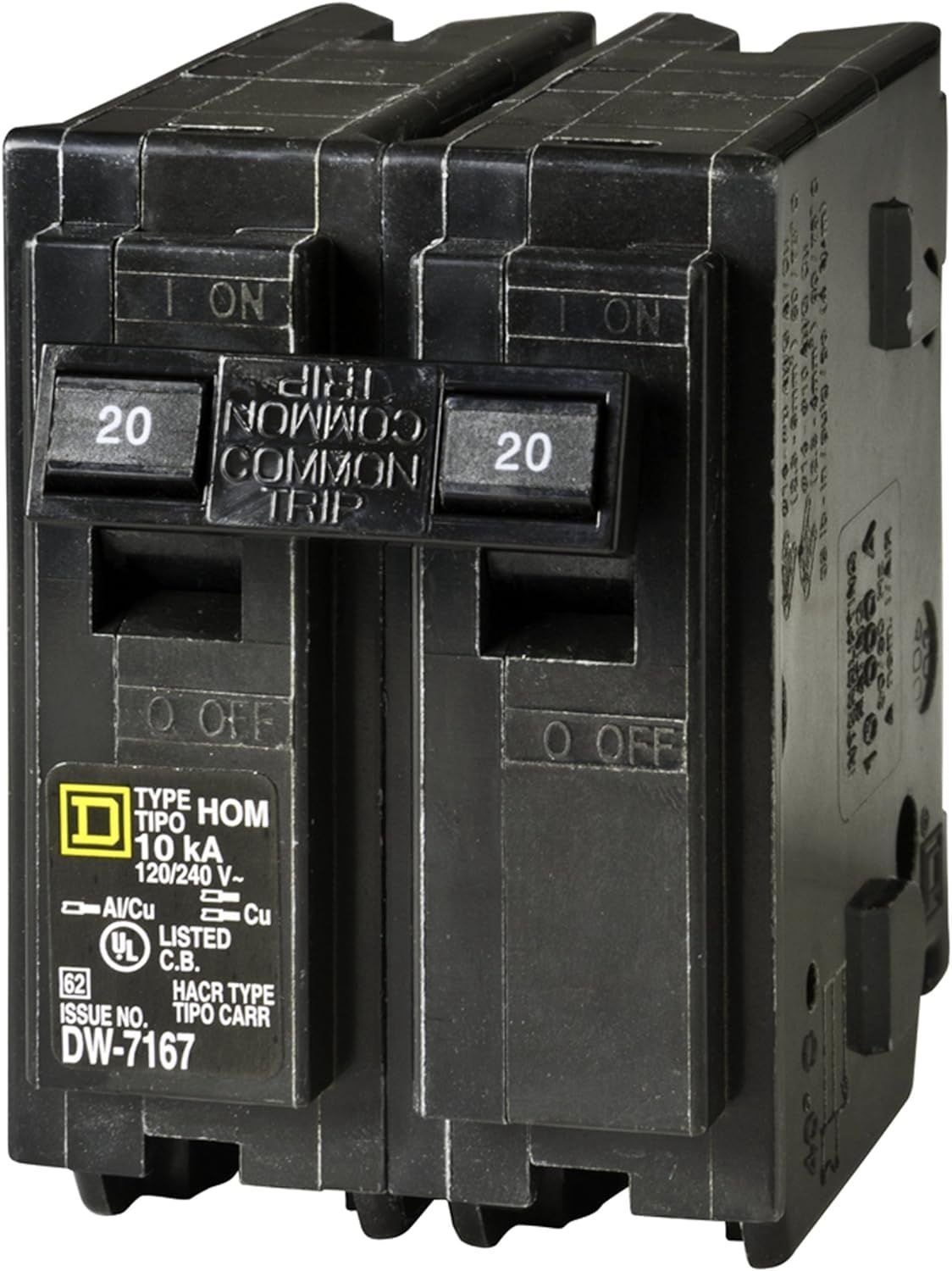

SQUARE D HOMELINE BREAKER HOM220 2-POLE 20A

HOM220 is a Square D Homeline 2 pole circuit breaker rated for 20 amps and 120/240 volts AC with a 10kA interrupting rating.This thermal magnetic molded case circuit breaker features a plug-in mounting type and provides reliable protection against overloads and short circuits. It includes long-time and instantaneous trip functions and is UL listed and HACR rated for residential and commercial applications.

• Key Specifications
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed, HACR Rated
• Connection Type: Clamp Terminal
• Wire Gauge: AWG 14 to AWG 8 Aluminum/Copper
• Phase: Single Phase
• Dimensions (LxWxH): 2.98 x 2 x 3.13 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM220
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065289
• GTIN : 00785901065289
• Country of Origin : Mexico

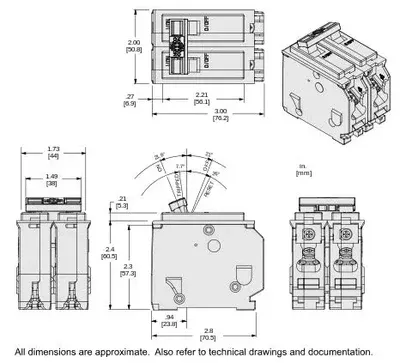

• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.65
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
