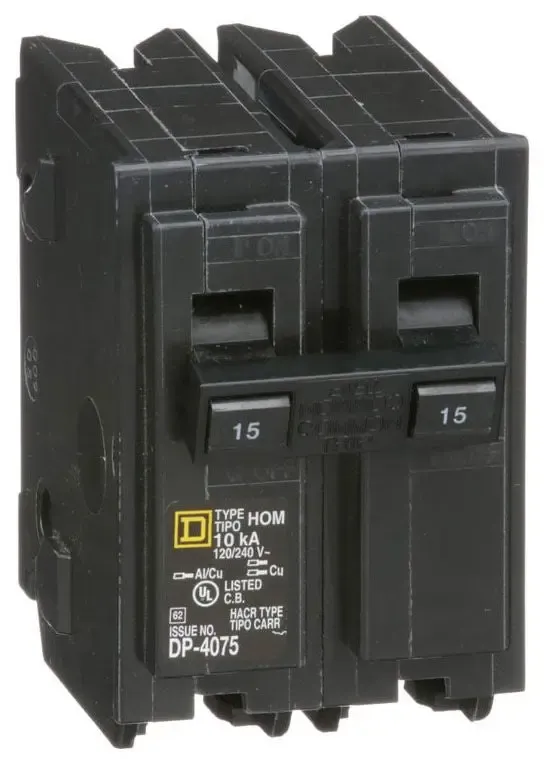

SQUARE D HOMELINE BREAKER HOM215 2-POLE 15A

HOM215 is a Square D Homeline 2-pole, 15A, 120/240VAC plug-in circuit breaker designed for reliable circuit protection.

This thermal magnetic molded case breaker features a 10kA interrupting rating at 240V, plug-in mounting for easy installation, and is compatible with Square D Homeline load centers. It is UL listed, CSA certified, and HACR rated for use in heating, air conditioning, and refrigeration equipment. The standard trip unit provides both long-time and instantaneous overcurrent protection.

Key Specifications

• Amperage: 15A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Series/Frame: Homeline (HOM)
• Trip Unit: Standard, thermal magnetic (LI)
• Certifications: UL Listed, CSA Certified, HACR
• Wire Size: 1x 14–8 AWG (Cu/Al), 2x 14–10 AWG (Cu)
• Dimensions: 2.98" D x 2" W x 3.13" H
• Operating Temp: 40°C (104°F)
• Connection: Clamp terminal

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM215
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065265
• GTIN : 00785901065265
• Country of Origin : Mexico

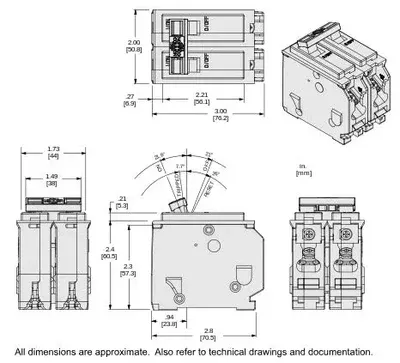

• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.66
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
