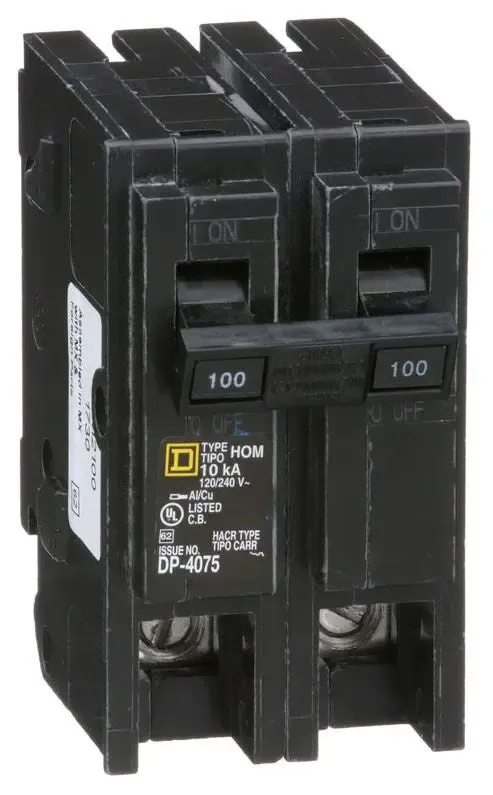

SQUARE D HOMELINE BREAKER HOM2100 2-Pole 100A

HOM2100 is a Square D Homeline miniature circuit breaker providing 100 amp, 2 pole, 120/240 VAC circuit protection with a 10 kA interrupt rating.

This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, designed for plug-on mounting in Homeline load centers. It supports wire sizes from 4 AWG to 2/0 AWG copper or aluminum, has UL listing and HACR certification, and operates at 50/60 Hz frequency with a temperature rating of 104°F (40°C). Dimensions are approximately 3.13 in H x 2 in W x 2.98 in D.

• Key Specifications
• Amperage: 100 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kA at 240 V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Wire Size Range: 4 AWG to 2/0 AWG Copper/Aluminum
• Frequency: 50/60 Hz
• Certifications: UL Listed, HACR Rated
• Dimensions (HxWxD): 3.13 x 2 x 2.98 inches
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM2100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065753
• GTIN : 00785901065753
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.95 lb
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 4 to AWG 2/0, Aluminum/Copper
