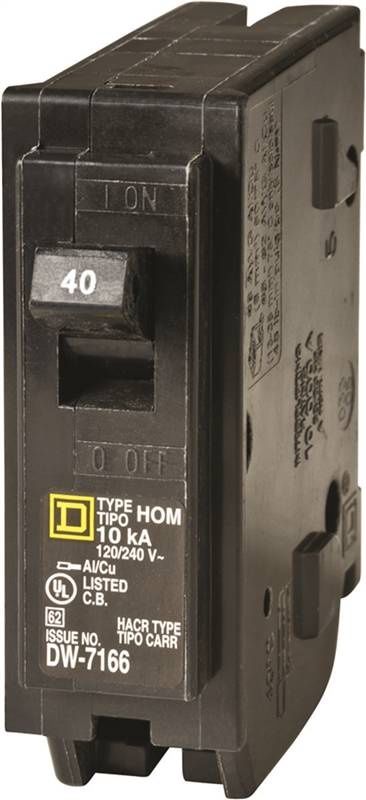

SQUARE D HOMELINE BREAKER HOM140 1-POLE 40A

HOM140 is a Square D Homeline 1-pole miniature circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This plug-in circuit breaker features a 40A amperage rating, 120/240VAC voltage, and a 10kA interrupt rating. It is part of the HOM series and is compatible with Homeline load centers. The standard thermal magnetic trip unit provides both overload and short-circuit protection. Electrical connections accept 8 to 2 AWG aluminum or copper wire. The compact design measures 1 inch wide by 2.98 inches deep by 3.13 inches high, making it easy to install in tight spaces.

Key Specifications

• Part Number: HOM140
• Manufacturer: Square D
• Series/Frame: Homeline (HOM)
• Amperage: 40A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10kA
• Trip Unit: Standard Thermal Magnetic
• Wire Size: 8 to 2 AWG (Aluminum/Copper)
• Certifications: UL Listed, California Proposition 65

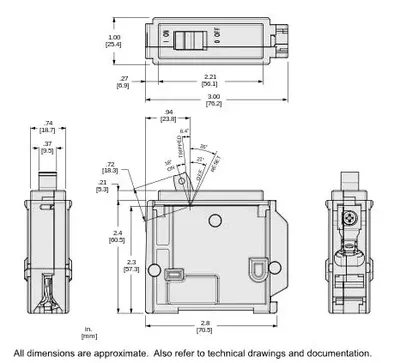

• Dimensions: 1" W x 2.98" D x 3.13" H
• Application: Residential and light commercial load centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM140
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065241
• GTIN : 00785901065241
• Country of Origin : Mexico
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.34
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 8 to AWG 2, Al/Cu
