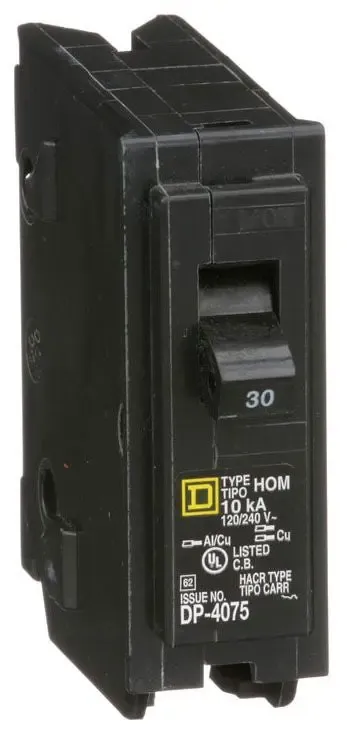

SQUARE D HOMELINE BREAKER HOM130 1-Pole 30A

HOM130 is a Square D Homeline 1 pole circuit breaker rated for 30 amps and 120/240 VAC voltage with a 10kA interrupt rating.This thermal magnetic molded case circuit breaker features plug-on mounting for easy installation, long-time and instantaneous trip functions, and screw clamp terminal connections. It is UL and CSA certified, mercury-free, and designed for use in Homeline load centers.

• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10kA at 120/240 VAC
• Series/Frame: Homeline (HOM)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Terminal Connection: Screw Clamp
• Certifications: UL Listed, CSA Certified, HACR Compliant
• Wire Size: 14 to 8 AWG (1 cable), 14 to 10 AWG (2 cables)
• Dimensions: 3.13" H x 1" W x 2.98" D
• Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM130
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100A/HOM
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065227
• GTIN : 00785901065227
• Country of Origin : Mexico

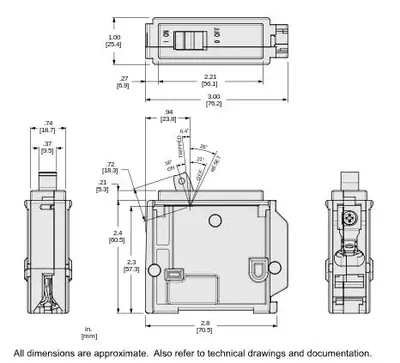

• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.35
• Panel Type : Homeline Load Center
• Standards : CSA Certified, HACR, UL Listed
• Certification : CSA Certified, HACR, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Al/Cu, 2x AWG 14 to AWG 10, Cu
