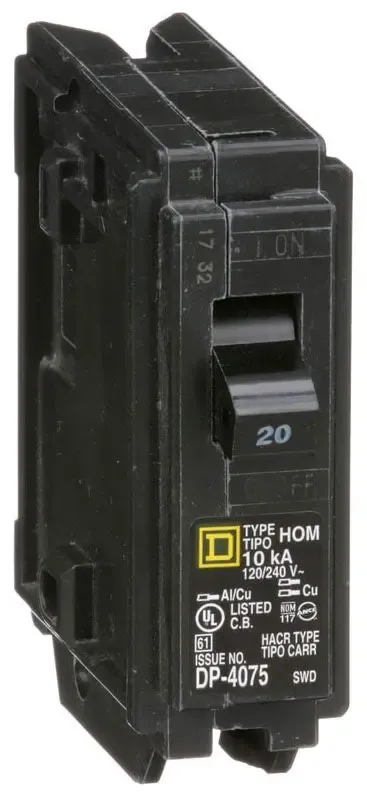

SQUARE D HOMELINE BREAKER HOM120CP 1-POLE 20A

HOM120 is a Square D Homeline miniature circuit breaker providing 20 amp, 1 pole, 120/240 VAC circuit protection with a 10 kA interrupt rating.HOM120 features a thermal magnetic trip unit, plug-in mounting, and screw clamp terminals supporting 14 to 8 AWG wire sizes. It is UL listed and designed for residential and commercial load centers, ensuring reliable overload and short circuit protection.

• Key Specifications
• Amperage: 20 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Trip Type: Thermal Magnetic
• Wire Size: 14 to 8 AWG
• Connection Type: Screw Clamp Terminal

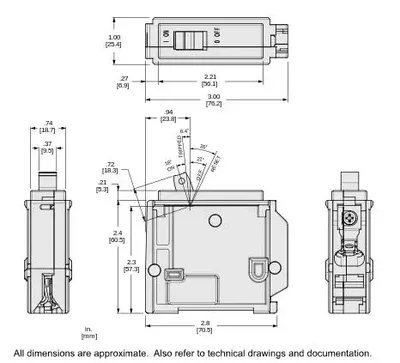

• Dimensions: 3.13 in H x 1 in W x 2.98 in D
• Frequency Rating: 50/60 Hz
• Certifications: UL Listed, HACR Rated
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM120
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065210
• GTIN : 00785901065210
• Country of Origin : United States
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.28 lb
• Certification : CSA Certified, HACR, Switching Duty rated, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
