SQUARE D HOMELINE BREAKER HOM115 1-POLE 15A

HOM115 is a Square D 15 Amp 1 Pole miniature circuit breaker designed for 120/240VAC applications with a plug-in mounting type.This thermal magnetic circuit breaker features a 10kA interrupting rating at 120VAC, long-time and instantaneous trip functions, and is UL and CSA certified. It supports wire sizes from 14 to 8 AWG for single cables and 14 to 10 AWG for two cables, suitable for Homeline load centers.

• Key Specifications
• Amperage: 15 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Mounting Type: Plug-In
• Interrupting Rating: 10kA at 120VAC
• Series/Frame: HOM
• Trip Unit: Thermal Magnetic with long-time and instantaneous trip
• Certifications: UL Listed, CSA Certified, HACR Compliant
• Wire Size Range: 14 to 8 AWG (1 cable), 14 to 10 AWG (2 cables)
• Dimensions (HxWxD): 3.13" x 1" x 2.98"
• Operating Temperature: 40 °C (104 °F)
• Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM115
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901065203
• GTIN : 00785901065203
• Country of Origin : United States

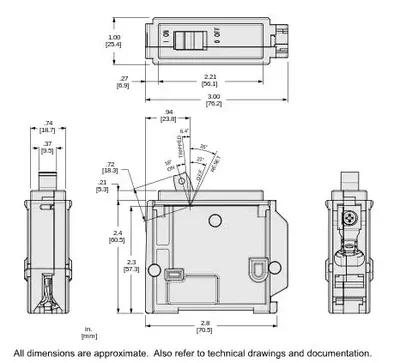

• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.291
• Certification : CSA Certified, HACR, Switching Duty rated, UL Listed
• Wire Size : 1x AWG 14 to AWG 8, Aluminum/Copper, 2x AWG 14 to AWG 10, Copper
